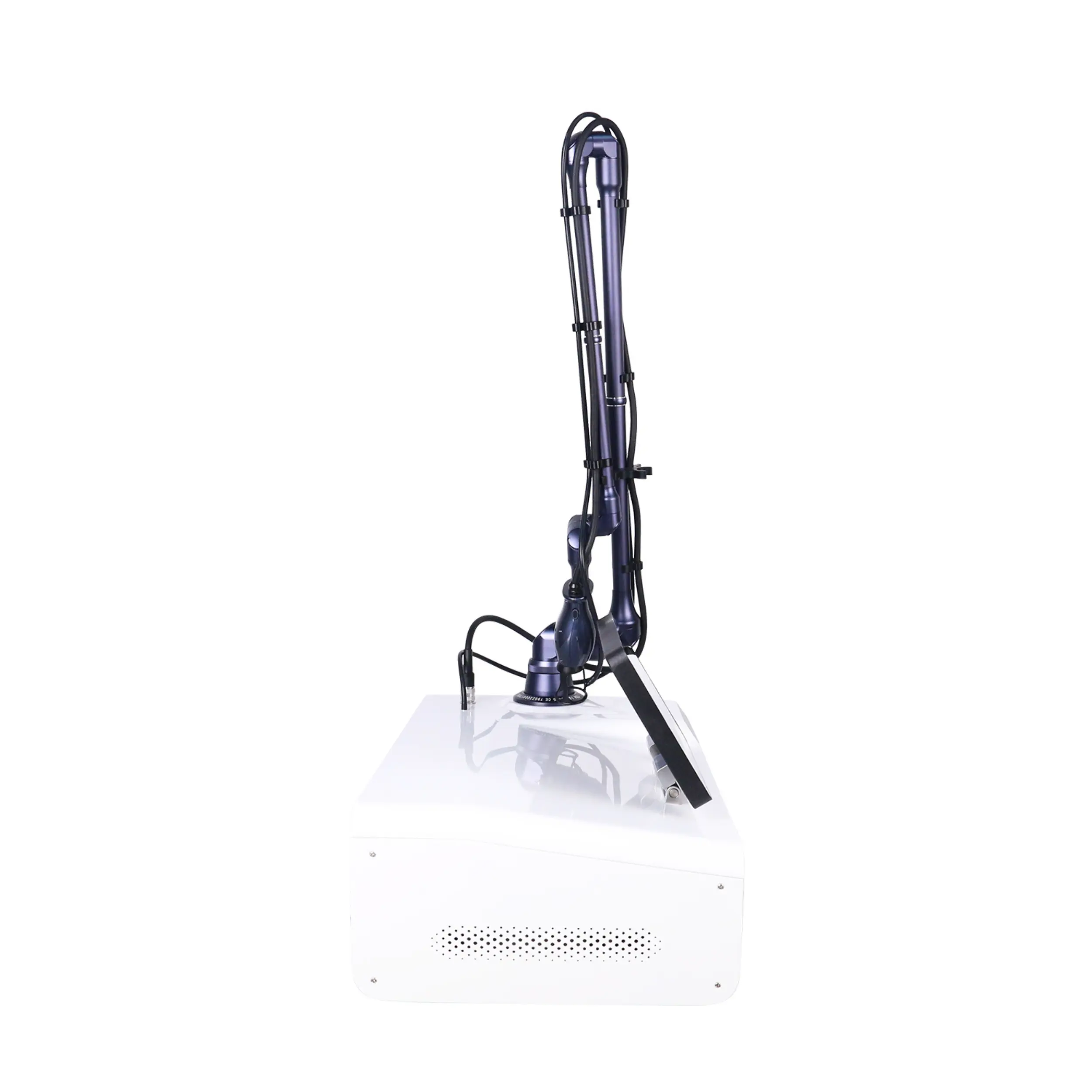

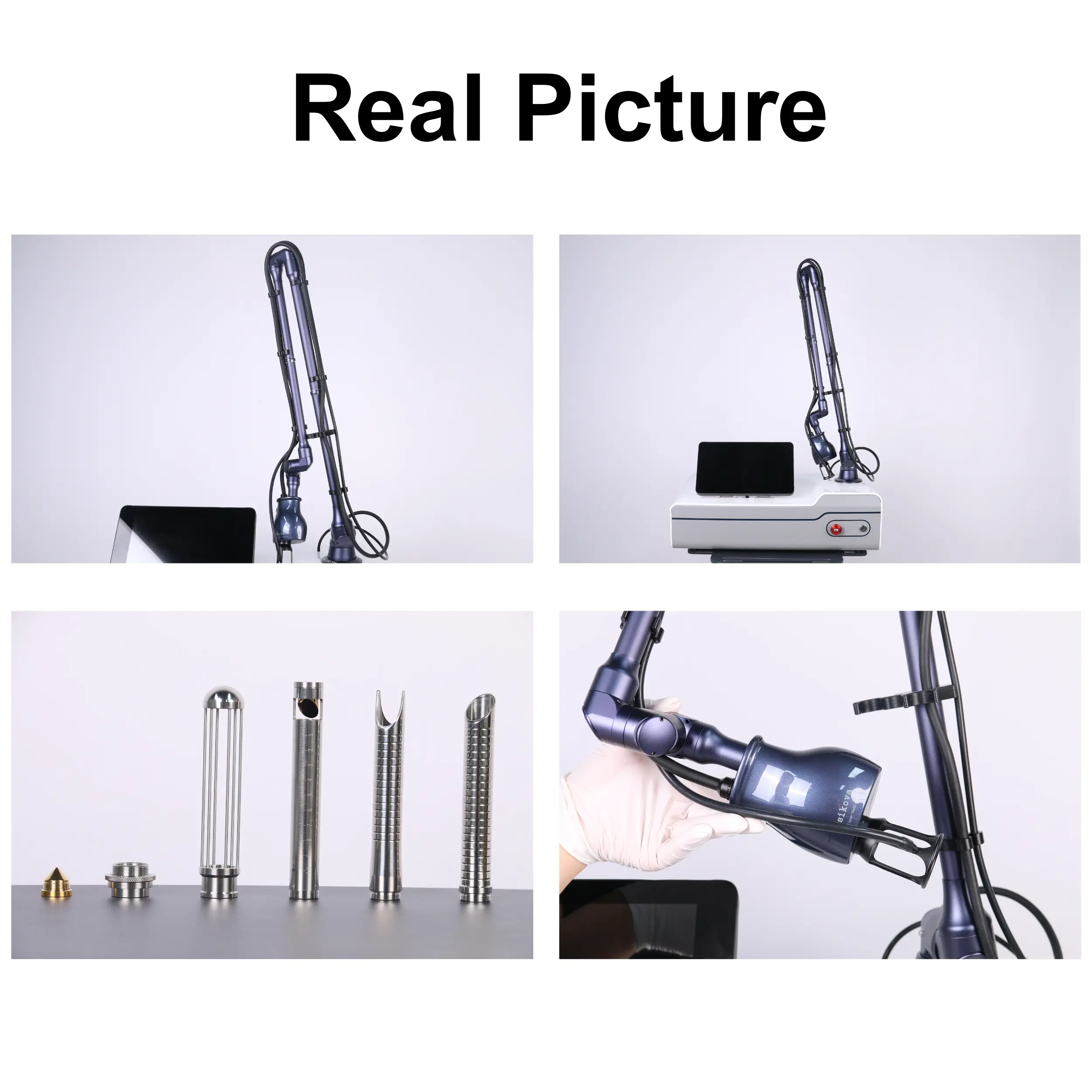

ReFrax™ Fractional RF CO₂ Laser System

Working principle

ReFrax utilizes 10.6µm RF metal CO₂ laser to output fractional micro-beams through the optical guide arm. Each beam of light energy is focused on the skin (or mucous membrane) to produce micro-ablative columns, and the surrounding intact tissue is retained to form a “thermal bridge”, activating the regeneration of new collagen and elastic fibers in a short time, thereby achieving tissue remodeling, firming and pigment regulation.

Highlights and advantages

• Adjustable 1- 60W machine power: for mild skin beautification and deep scar repair

• RF metal light: uniform beam, low attenuation, average usage > 20,000h.

• Triple scanning mode (sequential/random/center-split): free control of heat accumulation, reducing post-treatment inflammation.

• 20×20mm scanning treatment: large area scanned at one time, improving treatment efficiency and promoting customer second consumption.

• Integrated air cooling and no need for water circulation: a compact equipment that allows flexible movement.

• Double machine insurance: key lock + emergency stop switch + red light indication for safer machine operation.

Multi-scenario application

• Skin renewal: fine lines, large pores, photo-aging skin.

• Scar treatment: surgical scars, acne scars, scars after burns and scalds.

• Vaporization/cutting: minimally invasive removal of warts, growths, and pigmented moles.

Benefits of use

• For patients: short treatment time, fast recovery period, simple daily care.

• For doctors: modular preset parameters, gentle learning curve.

• For institutions: one machine for multiple uses, fast return on investment, suitable for dermatology and gynecology departments.

Specification

• Voltage: AC 220V/110V, 50–60 Hz

• Shell Material: Metal + ABS

• Display: 10.1″ Color Touchscreen

• Laser Type: RF Metal Tube CO₂ Laser

• Laser Wavelength: 10.6 μm

• Laser Power: 60 W

• RF Frequency: 1 MHz

• Output Modes: Pulse / Single Pulse / Continuous

• Spot Diameter: 80–200 μm Adjustable

• Maximum Scanning Area: 0.8″ × 0.8″ (20 × 20 mm)

• Minimum Scanning Area: 0.004″ × 0.004″ (0.1 × 0.1 mm)

• Cooling System: Forced Air Cooling

• Aiming Light: 650 nm Red Semiconductor Indicator Light

• Appearance Color: White + Light Gray

• Unit Dimensions: 24.3″ × 13.5″ × 6.9″ (61.6 × 34.2 × 17.5 cm)

• Package Dimensions: 35.4″ × 22.8″ × 12.2″ (90 × 58 × 31 cm)

• Gross Weight: 94.8 lbs (43 kg)

• Warranty: 36 Months

• Logo Customization: Support
